Accessories & Components Catalogue
Complete selection of Blue Wave Semiconductor accessories — from DEAR-MPCVD consumables to CF flange tooling, PLD accessories, HFCVD components, substrate heaters, temperature controllers, and custom system components.
DEAR-MPCVD Exclusive Accessories
Consumables, sample holders, jigs, gaskets, and quartz tubes for DEAR-MPCVD systems.
DEAR-MPCVD

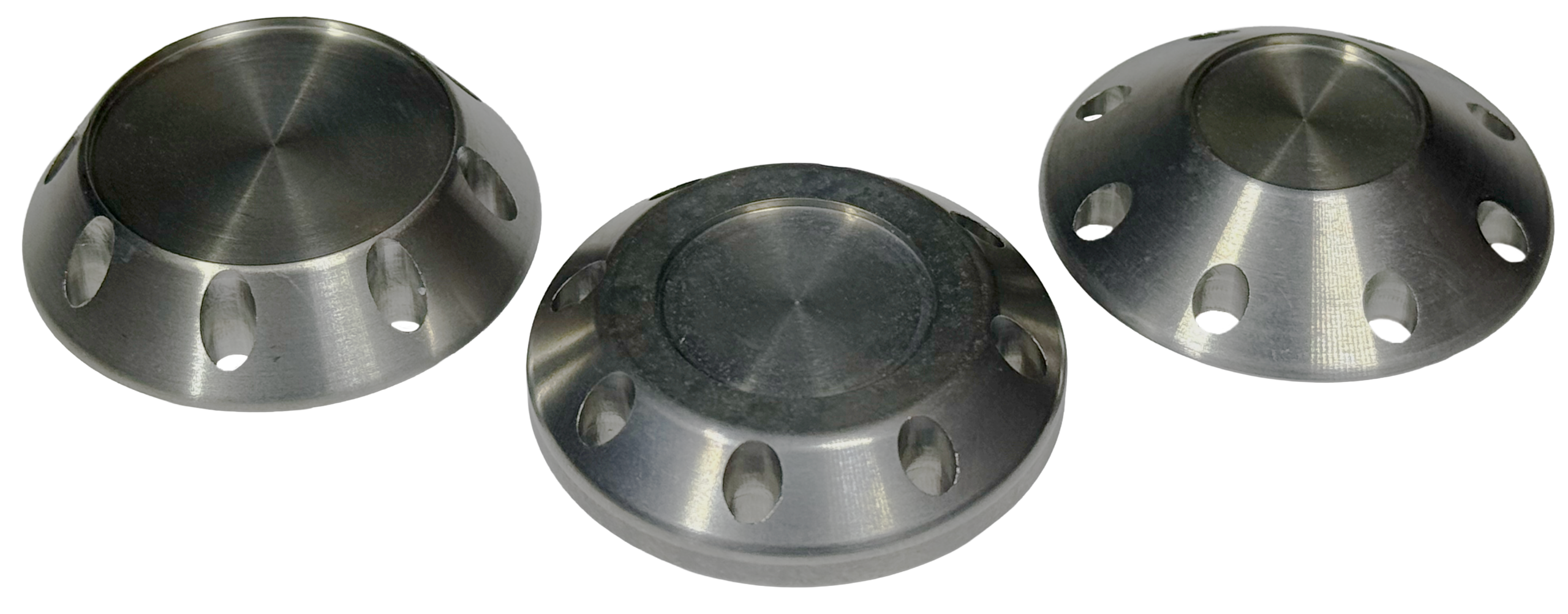

Molybdenum Jigs
Precision-machined high-purity moly jigs (S/M/L) for sample positioning and optimized gas flow in microwave plasma regions.
DEAR-MPCVD

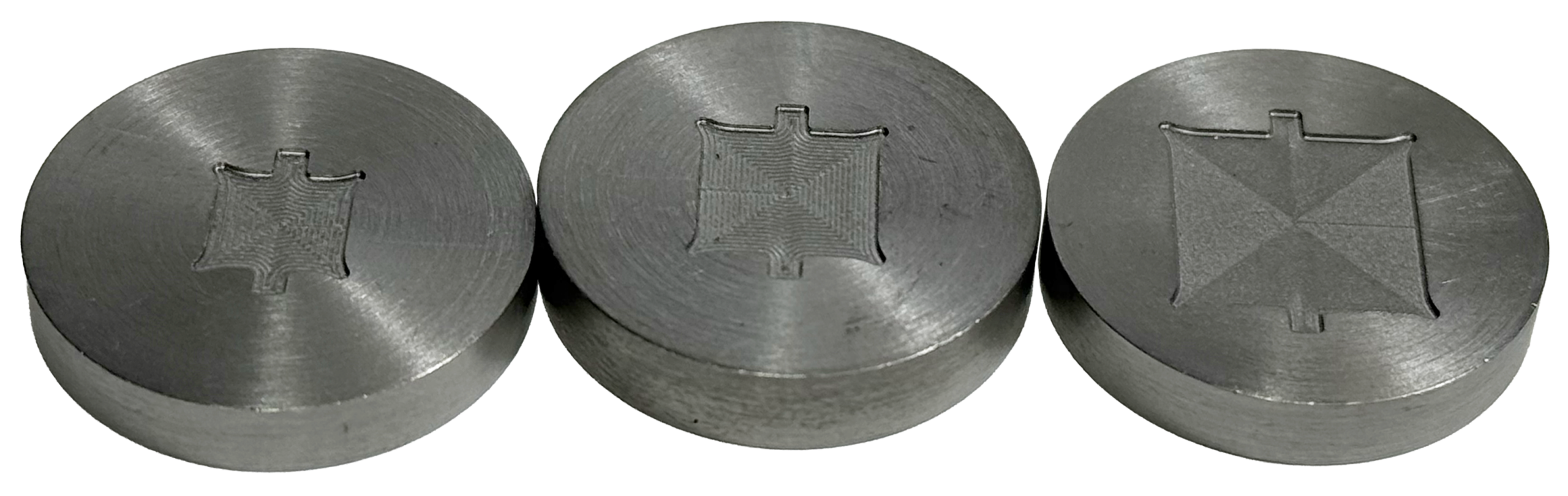

Molybdenum Sample Holders
High-purity moly substrate platforms (Small, Medium, Large) with customizable pockets and height variants for thermal regulation.
$22.00
DEAR-MPCVD

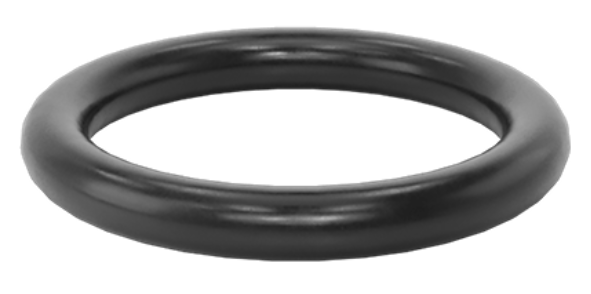

Replacement Gasket & O-Rings
Complete Viton sealing kit for DEAR-MPCVD systems containing four O-rings and one flat bottom flange gasket.
$10.00
DEAR-MPCVD

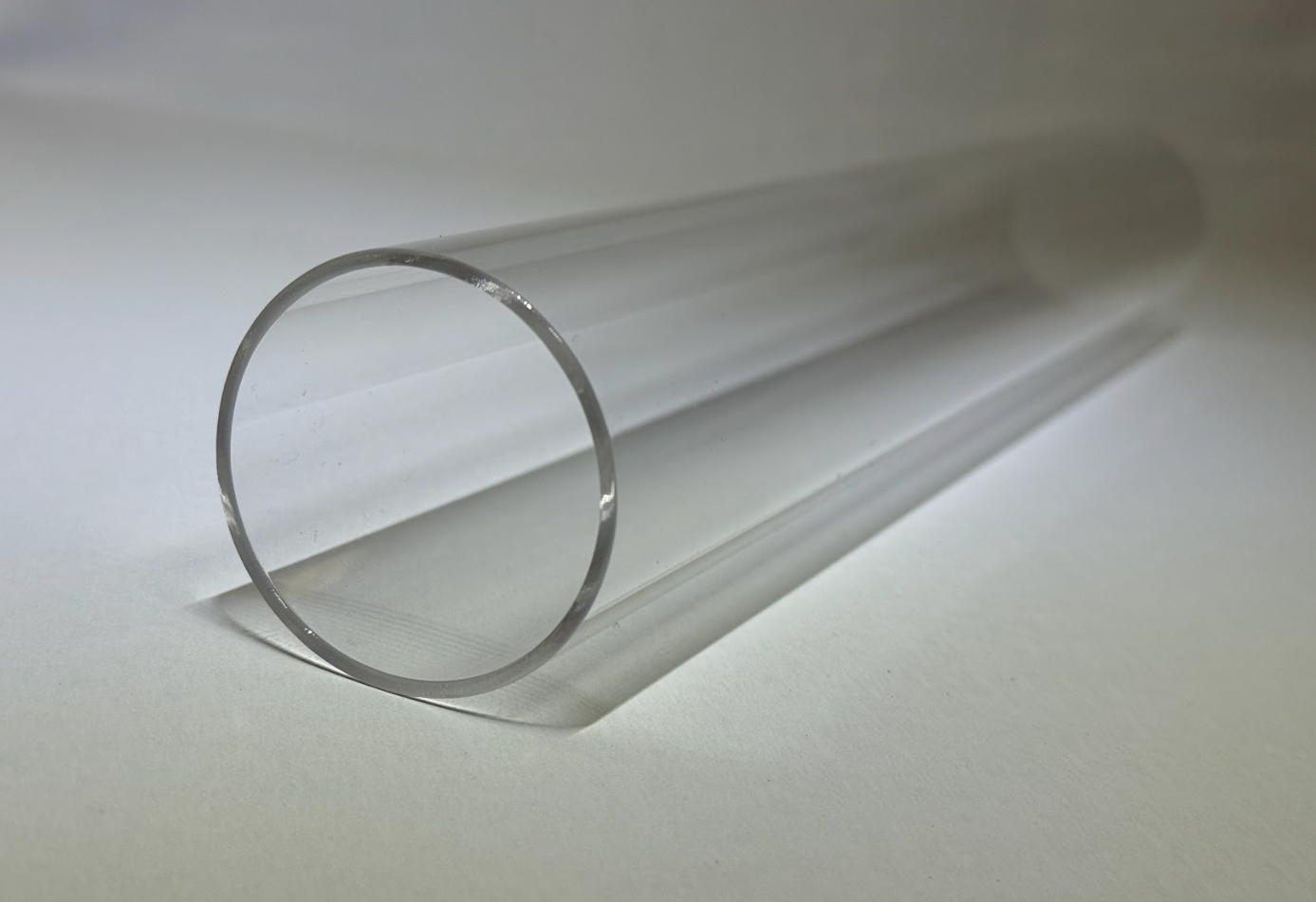

DEAR Replacement Quartz Tube
50mm OD x 46mm ID x 343mm L high-purity quartz reaction tube featuring rounded fired edges to prevent O-ring wear.
$10.00
CF Flange Accessories & Hardware
Flange holders, alignment pins, rotation feedthroughs, ceramic standoffs, and CF/ISO flanges.
CF Flange

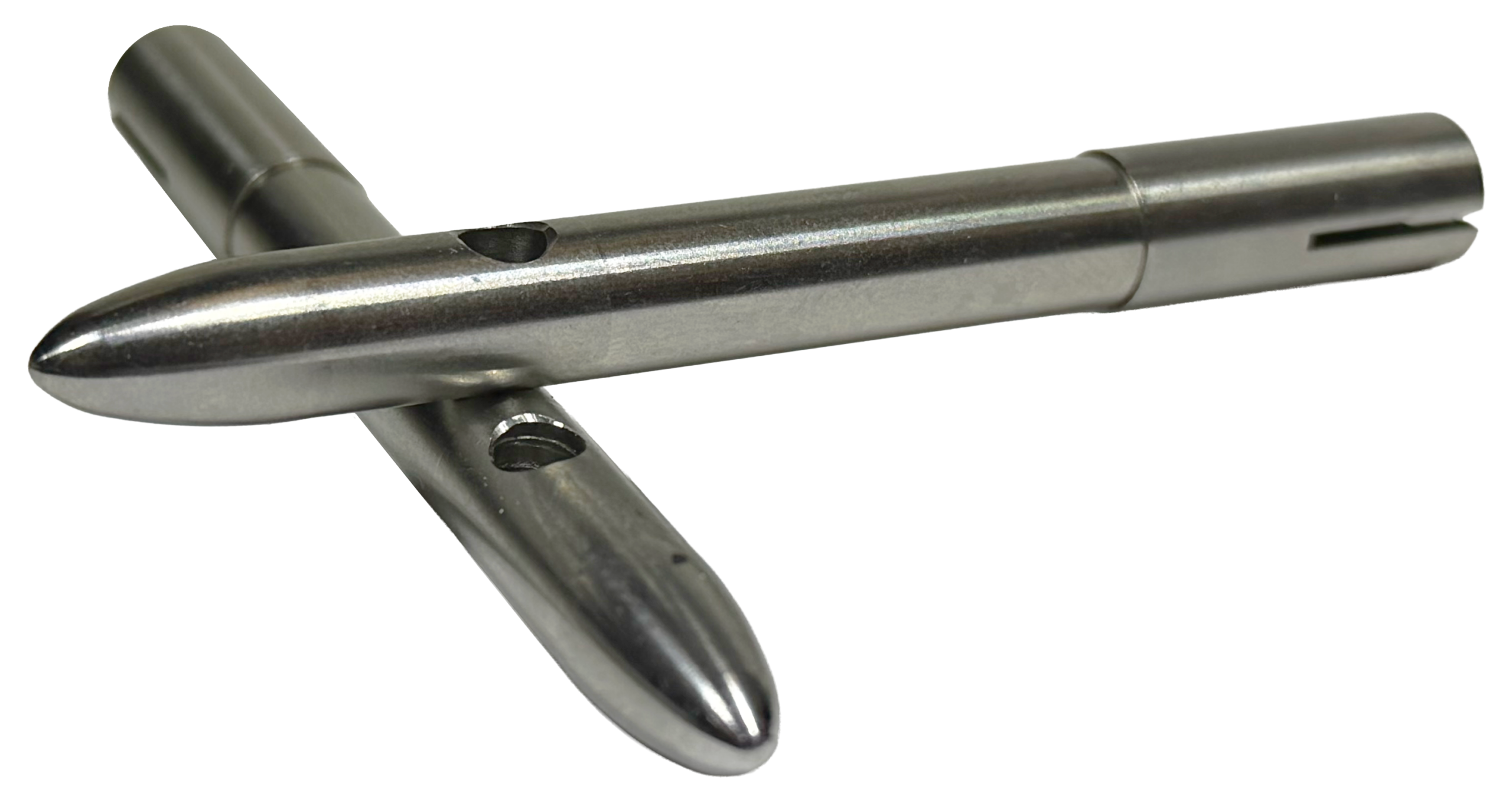

Flange Alignment Pins
Stainless steel alignment pins fitting 5/16" through-holes on 3.38" through 12" CF flanges to prevent gasket shear.
$18.00
CF Flange

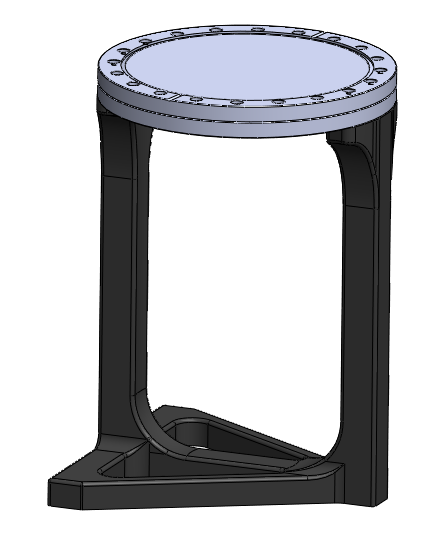

6" & 8" CF Flange Holders
High-strength plastic holders equipped with 6 positioning pins and anti-slip rubber bases for 6" and 8" CF flanges.
$90.00 – $110.00Price range: $90.00 through $110.00
CF Flange

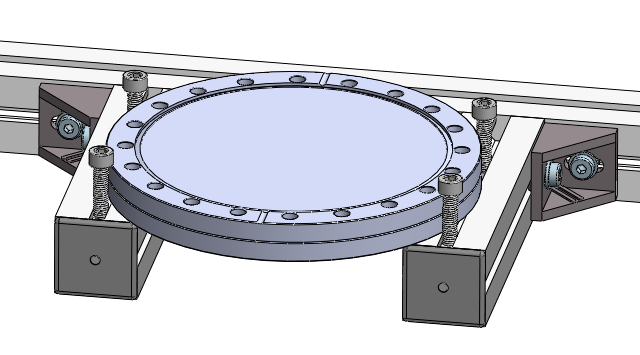

Mountable Flange Holder
Adjustable aluminum holder supporting CF, ISO, or custom flanges up to 10" OD. Mounts to 45mm T-slots or M8 threads.
$85.00
CF Flange
Vacuum Flanges
Precision stainless steel CF and ISO vacuum flanges built for ultra-high vacuum seal integrity.
$500.00
CF Flange
1.33" CF Flange Rotation Feedthrough
Ferrofluidic rotary feedthrough with 1/4" SS shaft. Fits optional manual or Ethernet-enabled motorized attachments.
$500.00 – $1,000.00Price range: $500.00 through $1,000.00
CF Flange
Ceramic Standoffs (6-32)
Precision technical ceramic standoffs (0.38" dia x 0.5" L) with 6-32 tapped ends for high-temp electrical isolation.
$500.00
PLD Exclusive Accessories
Target carousels, laser windows, 1" & 2" target holders, clamps, and target shields.
PLD Exclusive
PLD Target Carousel
Multi-target indexable carousel with 6 positions, motorized target rotation and rastering, and target cross-contamination shielding.
Contact Us
PLD Exclusive
PLD Laser Window (6" CF)
UV-transmitting optical viewport mounted on a 6" CF flange for high-energy pulsed laser entry.
$750.00
PLD Exclusive
PLD Target Holders (1" & 2")
Precision target mounting fixtures supporting standard 1-inch and 2-inch ablation targets.
$900.00
PLD Exclusive
PLD Target Clamps & Protective Shield
Paste-free target clamping kit (pack of 3) and protective target shield to isolate non-active target materials.
$1,000.00
HFCVD Exclusive Accessories
High-purity tungsten filaments and laser reflectance interferometers for HFCVD systems.
HFCVD Exclusive
Tungsten Filament (100 ft Roll)
0.019" (0.48mm) diameter, 99.95% pure tungsten wire for extreme thermal stability in HFCVD diamond growth.
Contact Us
HFCVD Exclusive
Laser Reflectance Interferometer
In-situ laser reflectance system engineered for real-time substrate surface reflection and film thickness analysis.
Contact Us
TCVD Exclusive Accessories
High-purity fused quartz reaction tubes (40mm and 80mm OD) for TCVD systems.
TCVD Exclusive
TCVD Fused Quartz Tubes
High-purity fused quartz reaction tubes available in 80mm OD x 1200mm L and 40mm OD x 584mm L with polished ends.
Contact Us
Substrate Heaters & Temperature Controllers
Inconel and Boron Nitride heaters, custom flanges, shutters, and Eurotherm PID controllers.
Substrate Heaters
Substrate Heaters & Flanges
Inconel and Boron Nitride heaters (1.0" to 10.0") paired with custom CF mounting flanges (2.75" to 8" CF).
$500.00 – $1,400.00Price range: $500.00 through $1,400.00
Substrate Heaters

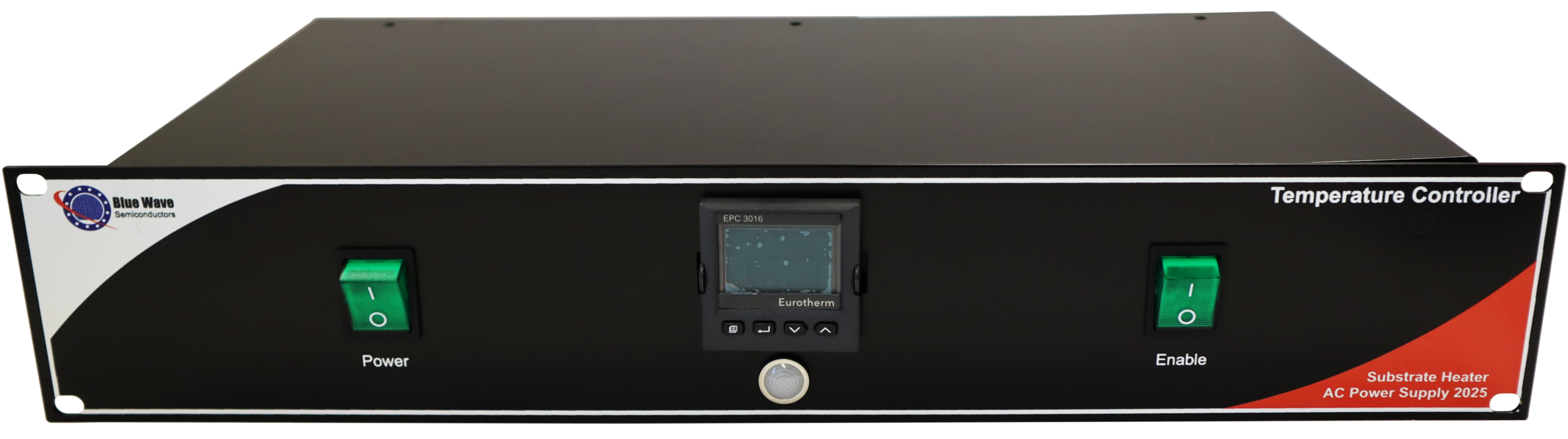

Temperature Controller
Eurotherm-based PID temperature controllers in 2U rackmount or compact benchtop enclosures (110VAC or DC models).
$450.00
Substrate Heaters

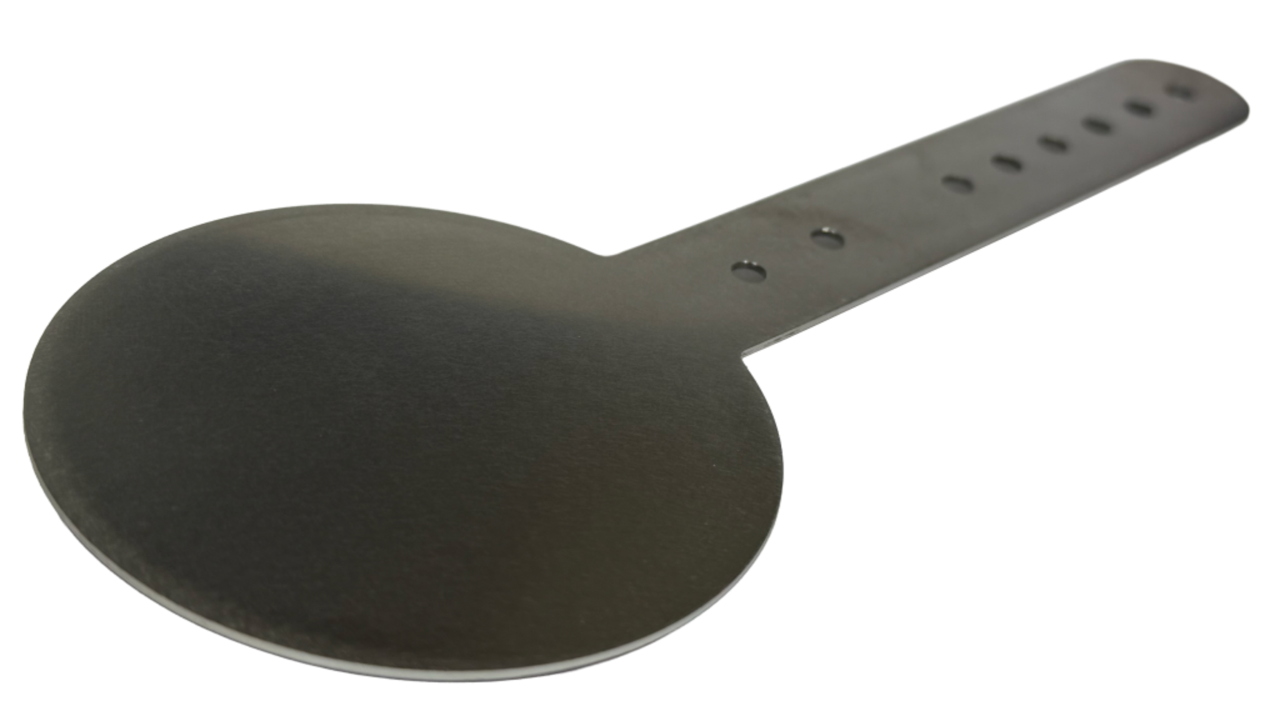

Substrate Heater Shutter
Customizable mechanical shutters and coupling hardware to shield substrate surfaces during non-growth intervals.
$600.00
Deposition Systems & Flow Control
Custom gas cabinets, custom quartz tubes, and MKS pressure controllers.
Deposition System

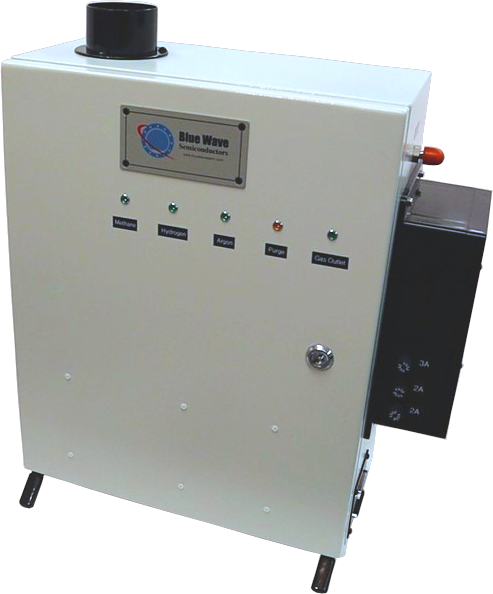

Custom Gas Cabinet
Mobile gas cabinet with customizable MFC flow configurations, over-pressure shut-off valves, and PLC automation.
$4,000.00
Deposition System

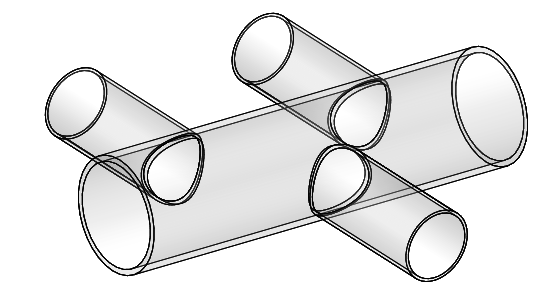

Custom Quartz Tubes & Chambers
Custom-fabricated 99.99% pure quartz reaction tubes and branch chambers for non-standard deposition geometries.
$45.00
Deposition System
MKS Pressure Controller
Downstream and process pressure control systems for precise process chamber pressure regulation.
Contact Us
Turbo Pumps & Vacuum Gauges
Turbo pumps, controllers, dry backing pumps, and full/medium/process range vacuum gauges.
Vacuum & Pumps
Turbo Pump & Components
High-vacuum 450 L/s turbo pumps, dedicated turbo controllers, and dry backing pumps.
Contact Us
Vacuum & Pumps
Vacuum Gauges
Full range, medium range, and process pressure vacuum measurement gauges.
Contact Us
