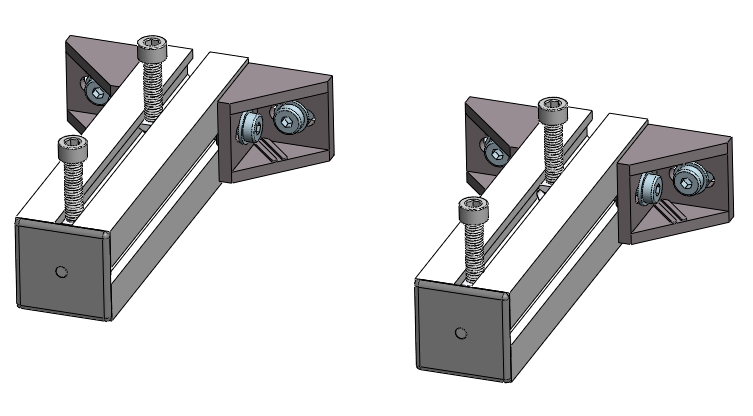

Mountable Flange Holder
Adjustable Aluminum Holder for Any Flange Up to 10″ OD
The Mountable Flange Holder is a versatile, adjustable support platform for securely holding CF, ISO, or custom vacuum flanges during assembly, maintenance, and component integration. Unlike fixed-size holders, precision adjustment screws allow it to accommodate any flange outer diameter up to 10 inches — ideal for labs working with multiple flange standards.
Constructed from high‑strength aluminum for superior rigidity, it mounts directly to standard 45 mm T‑slotted profiles (Blue Wave's standard frame size) or to any surface with M8‑threaded holes, enabling flexible, permanent workstation configurations.
Adjustable to fit any CF, ISO, or custom flange up to 10″ OD. Mounts to 45 mm T-slot or M8-threaded surfaces.
Volume Pricing
Volume pricing is available. Contact our team with your quantity requirements for a bulk quote.
Email: info@bluewavesemi.com | Phone: +1 (410) 907-6807
Custom Configuration Inquiry
Need holders for a specific workstation configuration, custom mounting pattern, or non-standard flange? Tell us about your setup.
The Universal Flange Support for Any Vacuum Workstation
Multi-Standard Labs
Adjustable to any flange type — CF, ISO, or custom — with OD up to 10″. One holder supports your entire flange inventory without swapping hardware.
Workstation Mounting
Bolts permanently to 45 mm T-slot profiles (Blue Wave standard) or any M8-threaded surface, creating a fixed, ergonomic flange handling station.
Surface Protection
Elevates flanges safely off the workbench during gasket installation, hardware attachment, and cleaning — no contact with precision knife-edge sealing faces.
Hardware Assembly
Securely cradles flanges equipped with valves, feedthroughs, viewports, or extended components — keeping heavy assemblies stable and hands-free.
Holder Specifications
Precision-adjustable aluminum holder with T-slot and M8 mounting options — built for labs that work with multiple flange standards and sizes.
| Specification | Parameter |
|---|---|
| Material | High-strength aluminum |
| Max Flange OD | Up to 10 inches |
| Flange Compatibility | CF, ISO, or custom flanges |
| Adjustment | Precision screws for fine diameter tuning |
| Primary Mount | 45 mm T-slotted extrusion profile |
| Secondary Mount | Any surface with M8-threaded holes |
| Frame Compatibility | Blue Wave standard 45 mm frame profile |
| Handling Benefit | Protects sealing surfaces, hands-free use |
Features, Related Accessories & Gallery
1Universal Adjustability
- Precision screws adjust support arms to any flange diameter up to 10″
- Compatible with CF, ISO, and fully custom flange standards
- Eliminates the need for multiple fixed-size holders in mixed-flange labs
- Centered and stable fit for flanges of any geometry
- Re-adjustable in seconds when switching between flange sizes
2Aluminum Construction
- High-strength aluminum provides superior rigidity vs. plastic alternatives
- Withstands the weight of flanges with attached valves and hardware
- Rigid frame minimizes flexing during assembly and torquing tasks
- Corrosion resistant — safe for cleanroom and industrial environments
- Long-term durability under daily lab use conditions
3Mounting Versatility
- Designed for direct attachment to standard 45 mm T-slotted extrusion profiles
- Blue Wave's standard frame profile — integrates seamlessly into BWS workstations
- Also compatible with any surface featuring M8-threaded mounting holes
- Enables permanent, ergonomic flange handling station configurations
- Mounting brackets provide stable, vibration-resistant installation
4Workflow & Safety
- Hands-free platform for gasket installation, cleaning, and hardware assembly
- Protects knife-edge sealing surfaces from scratches and bench contact
- Reduces risk of accidental flange drops during handling
- Ideal for flanges with attached valves, feedthroughs, or viewports
- Improves assembly speed and repeatability across maintenance cycles
Flange Alignment Pins
Stainless steel pins for precise, repeatable CF flange alignment. Fits 5/16″ through-holes on 3.38″–12″ flanges. Use with the holder for efficient assembly.
CF Flange Holder
Plastic flange holder with 6 positioning pins and rubber anti-slip base. Fixed 6″ or 8″ size — a lighter-weight alternative for benchtop use.
CVD & PVD Deposition Systems
The Mountable Flange Holder supports any standard CF or ISO flange used across Blue Wave's full CVD and PVD deposition system lineup, as well as third-party vacuum equipment.
View Systems
Universal Vacuum Equipment
Compatible with any vacuum system using standard CF or ISO flanges up to 10″ OD — not limited to Blue Wave systems. Ideal for multi-vendor lab environments.
View Products
